LIGHT ARMOURED VEHICLE - BASED ON LAND ROVER DEFENDER 110

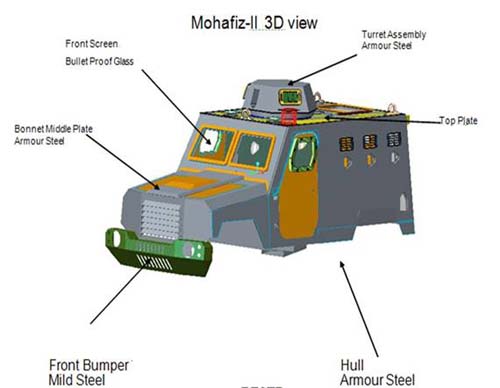

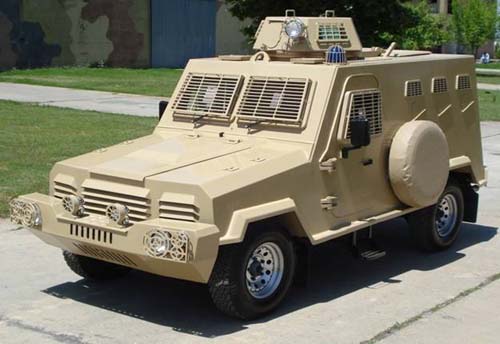

Light Armoured Vehicle has been designed and manufactured by Heavy Industries Taxila (HIT) on the chassis of a commercial vehicle Land Rover Defender 110. It has a welded Aluminium Armour hull along with Ballistic Steel with ricochet angles all round. The hull is protected against 7.62 mm bullet (NATO BALL) at point blank range. The vehicle has a rotating turret at the top thus facilitating all round control by the commander. The vehicle has bullet proof wind screens and run flat tyres.




MAIN FEATURES
Length without Bumpers  164  inch
Length with Bumpers  185.5  inch
Width without outer mudguards 69.75  inch
Width with outer mudguards 76.75  inch
Height with Turret 94  inch
Height without Turret 78.25  inch
Seating Capacity  08 (2 + 6)
Electrical system  12 VDC, 65 AMP
 Roof Ventilator  02
Exhaust Fan   01
Body      Hybrid (Aluminium Armour & Ballistic Steel)
Protection     Against 7.62 mm Ball NATO round ( B6 / NIJ 3 Level)
Seating arrangement    Folded seats
Seat belts    Available for crew / personnel
Bullet Proof Glasses               Wind Screen, Side Glasses & view ports protected against B6 / NIJ 3 Level
Firing Ports     7
Firing hatch
Rifle Racks  6
Ammunition Box As per customer requirement
Turret 360 degree rotation can be customized for 7.62 mm MG, BOW Gun OR Tear gas gun along whith 3 view ports
Tools Standard vehicle tools
Air conditioner  Both for crew / personnel
Lifting  Hooks Available
Towing Hooks Available
Fire Extinguisher    1
Public address system 1
Revolving light  1
Search light   1
Fog Lights  2
Colour    As per requirement
Optional Features
Communication equipment (including racks)
First aid box
Weapon System
Spare tyre (run flat type)
